sg198 Scanhead

High Resolution Scanhead

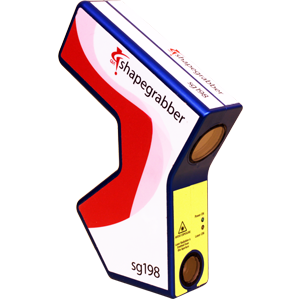

The sg198 is Shapegrabber’s latest 3D scanhead which has faster speed, better data quality, higher resolution, and wider dynamic range. It is included with the QVI shapegrabber ai620 3D scanner.

Request Info
ai620 3D scanner sg198 scanhead
Overall dimensions (mm) 1000 x 800 x 1850 Laser safety IEC Class 2M
System weight (kg) 400 Wavelength (nm) 405
Vertical scan motion (mm) 600 X field of view near (mm) 90
Vertical scale resolution (μm) 0.1 X field of view far (mm) 170
Rotary table motion (deg) 360 X point spacing, mid (μm) 50
Rotary table positional accuracy (arc sec) 5 Z resolution (μm) 2
Work load (kg) 80 Standoff (mm) 110
Electrical 100 to 240 V
50 / 60 Hz
Depth of field (mm) 185
OS Windows 10 Data rate at full DOF (pts/s) 155,000
Scanner software Shapegrabber SGCentral Maximum data rate (pts/s) > 1,500,000
Operating relative humidity 20% – 80% non-condensing
ai620 3D scanner with sg198 scanhead
Max scan volume (mm) 600 L x 185 Ø
Accuracy (ISO 10360) 15 + L/200 μm
Temperature reference (°C) 20 ±1
